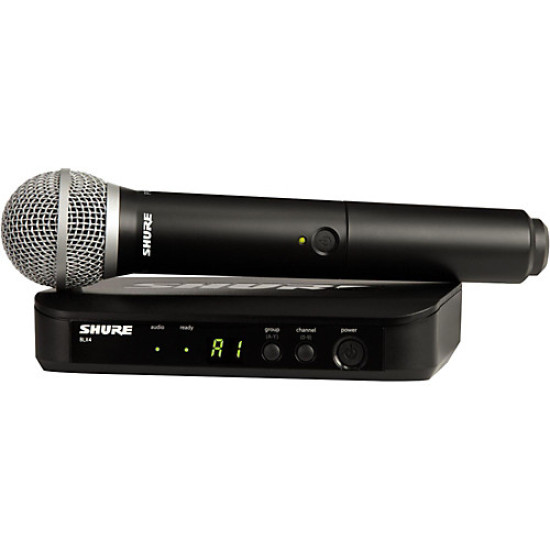

Shure BLX24/PG58 Wireless Microphone System

• Available Transmitter Form factors: Handheld
• Operating range (up to): 100 m (Under typical conditions)

BLX4 Wireless Receiver

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open frequency
• ¼" and XLR audio outputs
• Two color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)

BLX2/PG58 Handheld Transmitter with PG58 Capsule

• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries (included) provide up to 14 hours of continuous use
• 100 m (300 ft) operating range (line of sight)
• Integrated microphone capsule design
• 10 dB gain attenuation
• Lightweight, rugged construction
• Color ID caps (available separately)

• TECHNICAL SPECIFICATIONS

  BLX24/PG58 Specifications
  Set Type:

  Vocal
  Amount of Handhelds:

  1
  BLX4 Specifications
  Weight:

  241 g
  Height x Width x Depth:

  40.0 × 188.0 × 103.0 mm
  Transmission:

  Analog
  Type of Power Supply:

  External
  Receiver Housings:

  Molded ABS
  Active Antenna Possible:

  No
  Bias via BNC:

  No
  Encryption:

  No
  High Density Mode:

  No
  Interference Detection:

  No
  Remote Control:

  No
  Number of compatible systems per frequency band:

  Up to 12
  DANTE-Enabled Products:

  No
  Scan Features:

  Quick Scan
  Sync Features:

  None
  Detachable Antennas:

  No
  Network ability:

  No
  Software control :

  No
  Logic:

  No
  Cascade:

  No
  Rack Hardware:

  Optional: URT2
  Receiver Displays:

  LEDs
  Receiver type:

  Single
  Line Mic Switch:

  No
  Image Rejection:

  50 dB, typical
  RF Sensitivity:

  -105 dBm, for 12dB SINAD, typical
  Phantom Power Protection:

  No
  BLX2/PG58 Specifications
  Weight:

  340 g
  Height x Width x Depth:

  224.0 × 53.0 × 53.0 mm
  Transmitter weight:

  218 g
  Battery life alkaline:

  14 h
  Form Factor:

  Handheld
  Transmitter housings:

  Molded ABS
  Audio Mute:

  No
  Detachable Antennas:

  No
  Switchable RF power:

  No
  Batteries:

  AA
  Battery Status:

  Multi-Color LED
  Frequency Diversity:

  No
  Functionality:

  Transmitter
  High Density Mode:

  No
  Transmission:

  Analog
