AKG PW45 Perception Vocal Wireless Microphone System

AKG PW45 PERCEPTION VOCAL WIRELESS MICROPHONE SYSTEM
A wireless vocal system with brilliant sound and surprising easy of use.

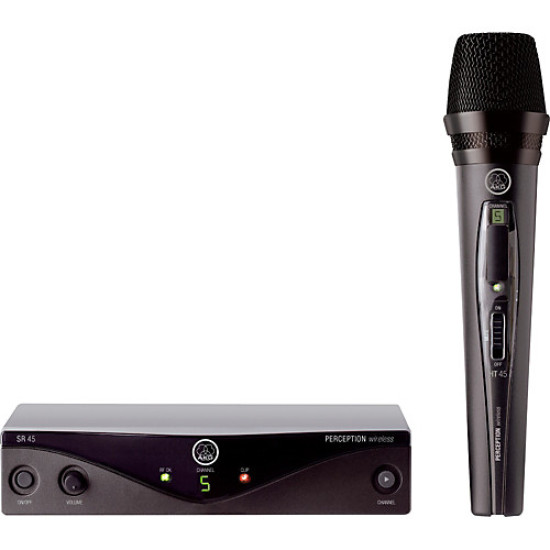

The AKG Perception Wireless Vocal Set system includes an SR 45 receiver, HT 45 handheld transmitter, universal power supply with US/UK/EU adapter, SA 45 stand adapter, and one AA size dry battery. It is an ideal plug-and-play wireless solutions for musicians and small installed sound venues.
SR 45 Stationary Receiver
The SR 45 Stationary Receiver delivers a diversity system, professional XLR and Jack outputs and the SMPS solution. The audio level and squelch threshold are adjustable on the receiver. It is a stationary receiver for use with all transmitters of the Perception wireless system.
The SR 45 operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.
HT 45 handheld transmitter
The HT 45 handheld transmitter features a spring-steel wire mesh front grill to protect the dynamic transducer from the hardships of onstage use. Its cardioid polar pattern ensures maximum gain before feedback and makes your voice cut through any mix. It provides low handling noise sensitivity, high gain before feedback and brilliant sound quality, as well as a built-in wind and pop filter to reduce wind and breath noise.
The HT 45 handheld transmitter operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies. The transmitter uses an antenna integrated within the housing.
30 Mhz selection bandwidth (depending on local frequency plans) 8 hours of operation with a single aa size battery Gain control on handheld transmitter Low battery indicator Noiseless on/off/mute switch on handheld transmitter
- Includes
- 1 HT 45 handheld transmitter
- 1 tripod adapter
- 1 AA battery
- 1 SR 45 receiver
- 1 SMPS switched mode power supply
- 1 guarantee card
- 1 frequency table
- 1 Manual Supplement sheet
SR 45 Stationary Receiver
Carrier frequency range: 500 - 560 MHz
Modulation: FM
Audio bandwidth: 40 - 20,000 Hz
T.H.D. at 1 kHz: typ. 0.8%
Signal/noise ratio: typ. 105 dB(A)
Squelch threshold: 100 to -70 dBm adjustable
Audio outputs: Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV RMS
Dimensions: 7.87" x 7.48" x 1.73", (200 x 190 x 44 mm)
Net weight: 12.69 oz, (360 g)
HT 45 handheld transmitter
Carrier frequency range: 500 - 560 MHz
Modulation: FM
Audio bandwidth: 70 - 20,000 Hz
T.H.D. at 1 kHz: typ. 0.8%
Signal/noise ratio: typ. 105 dB(A)
RF output: 10 mW
Power requirement: 1x 1.5 V AA size battery
Battery life: 10 hours
Dimensions: 9.01" x 2.08" x 2.08", (229 x 53 x 53 mm)
Net weight: 7.54 oz, (214 g)
