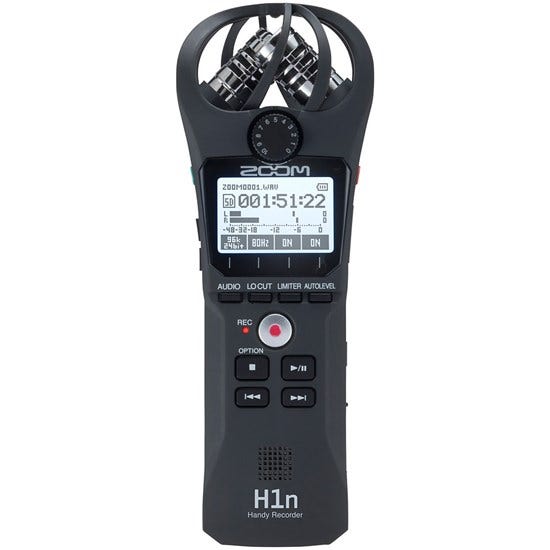

ZOOM H1N Handy Portable Digital Audio Field Recorder

Based on 0 reviews. - Write a review

$168.50

Stock: In Stock
Model: H1N

8690 views

Add to Cart

Apply To Rent

Return any time after minimum rental agreement

Description

FEATURES OF THE H1N

One-touch button controls
1.25” monochrome LCD display
Intuitive menus for easy operation
Stereo X/Y 90˚microphones handle up to 120 dB SPL
Stereo ⅛" Mic/Line In mini phone jack
Stereo ⅛" Phone/Line Output jack with dedicated volume control
Limiter button for input signal up to 120 dB SPL
Playback Speed Control, Voice Emphasize Filter, and Stereo Bounce functions
Auto-Record, Pre-Record, and Self-Timer functions
Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
Tone generator for filmmaking use with DSLR and video cameras
Records directly to SD and SDHC cards up to 32 GB
Micro USB port for data exchange to and from computer and use as an audio interface
Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
Up to 10 hours of operation with alkaline batteries

SPECS

SIMULTANEOUS PLAYBACK TRACKS:	2
SIMULTANEOUS RECORDING TRACKS:	2

FUNCTIONS:	Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize
	Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing
RECORDING FORMATS:	WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96
	kHz/24-bit
A/D CONVERSION:	24-bit, 128x oversampling
D/A CONVERSION:	24-bit, 128x oversampling
SIGNAL PROCESSING:	32-bit
RECORDING MEDIA:	microSD/microSDHC cards (Class 4 or higher, up to 32
	GB
DISPLAY:	1.25" monochrome LCD (96 × 64)
BUILT-IN STEREO MIC:	Unidirectional condenser, 90° XY stereo format
	Gain: -∞ dB to +39 dB
	Maximum sound pressure level: 120 dB SPL
INPUTS:	1/8" stereo phone jack
	Rated input level: -∞ dB to -39 dBm
	Input impedance: 2 kΩ
	Plug-in power supported (2.5 V)
BUILT-IN SPEAKER:	Built-in 500 mW mono speaker
	Output impedance: 8 Ω
OUTPUTS:	1/8" stereo phone jack (combined line/headphones)
	Rated output level: 20 mW + 20 mW into 32Ω load
	Output impedance: 10 kΩ or more
USB:	Micro USB port
	Mass storage class operation: USB 2.0 high speed
	Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
	Transfer method: asynchronous
POWER REQUIREMENTS:	2 AAA batteries (alkaline, nickel-metal hydride rechargeable,
	or lithium)
	AC adapter (ZOOM AD-17): DC 5V/1A
	USB bus power
BATTERY LIFE (ALKALINE BATTERIES):	Approximately 10 hours
	(continuous recording time using built-in mic, 44.1 kHz/16-bit)
DIMENSIONS:	1.9 in (W) x 5.4 in (D) x 1.2 in (H)
	50 mm (W) × 137.5 mm (D) × 32 mm (H)
WEIGHT:	0.13 lbs / 60 g (without batteries)
