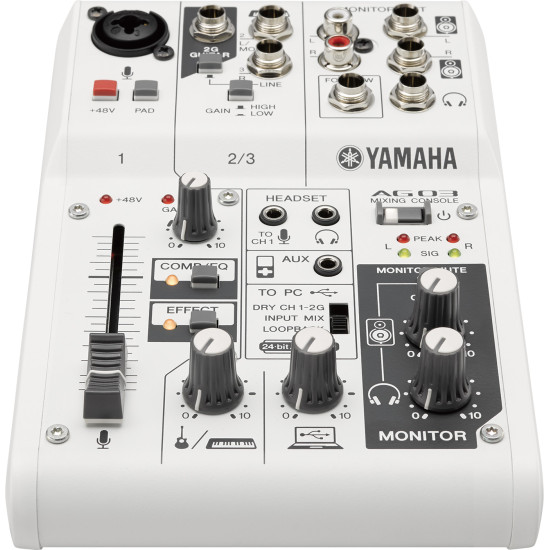

Yamaha AG03 Multi-Purpose 3-Channel Mixer/USB Audio Interface

Product Code: Yamaha AG03
Availability: In Stock

Price: $249.00

Add to Cart

Qty:

Add to Compare

Add to Wish List

Description

Multipurpose 3-channel mixer with USB audio interface

Multipurpose 3-channel mixer with USB audio interface.
Flexible LOOPBACK feature – perfect for live recording or webcasting.
High resolution (24-bit192kHz) 2-track audio recording and playback.
"D-PRE" studio quality mic preamps with high gain and low noise.
Easy control and pro sound with 1-TOUCH COMP/EQ, EFFECT processing.
+48V phantom power on CH1 input for condenser mics and Dl boxes.
Hi-Z input for guitars on CH2.
iPad (2 or later) connectivity via Apple iPad Camera Connection Kit (requires external USB power supply).
USB buspowered for Mac & PC.
Rugged metal chassis.
Includes Cubase AI downloadable version.

Specs

I/O	Phantom power	+ 48 V
Input Channels	Mono[MIC/LINE]	1 including HEADSET MIC (Plug-in Power)
	Stereo[LINE]	1 including Guitar input (Mono)
	AUX	1
Output Channels	MONITOR OUT	2
Output Channels	PHONES	2 including HEADSET PHONES
Bus		Stereo: 1
Input Channel Function	PAD	26 dB
Input Channel Function	PEAK LED	LED turns on when the signal reaches 3 dB below clipping level
On-board processors	DSP	CH1: COMP / EQ, EFFECT (SPX Reverb)
Level Meter		USB Output Level; 2 x 2 point LED meter [PEAK, SIG]
USB		USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Power requirements		DC 5 V, 500 mA
Power consumption		Max. 2.5 W
System Requirements	OS	For USB Audio/AG DSP Controller: Windows 7 or later / Mac OS X 10.7 or later
Dimensions	W	129 mm (5.1")
	H	63 mm (2.5")
	D	202 mm (8.0")
Net weight		0.8 kg (1.8 lbs)
Options		Foot Switch: FC5, Mic Stand Adaptor: BMS-10A
Others		Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C
